Working Temperature Range °F
|
Ambient +20° to 185°
|
|
Working Temperature Range °C
|
Ambient + 10° to 200°
|
|
Reservoir Capacity (gallons)
|
4.49
|
|
Reservoir Capacity (liters)
|
17
|
|
Reservoir/Tank Material
|
Glass
|
|
Reservoir Cover
|
Round, Included
|
|
DuraTop
|
Yes
|
|

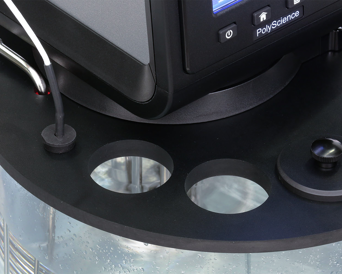

Working Access (L x W x D) (inches)
|
Six openings, 2 in diameter x 11 in depth
|
|
Working Access (L x W x D) (cm)
|
Six openings, 5.1 cm diameter x 27.9 cm depth
|
|
Temperature Stability °C
|
±0.01°
|
|

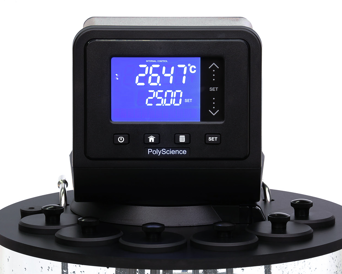

Display
|
3.75" Touch-Pad LCD
|
|
Display Resolution (Set)
|
0.01
|
|
Display Resolution (Read)
|
0.01
|
|
Pump Type
|
Pressure/Suction
|
|
Pump Speed
|
Variable
|
|
Flammability Class (DIN 12876-1)
|
III (FL)
|
|
Over-Temperature Protection / Failsafe Heater Control
|
Yes
|
|
Low Liquid Level Protection
|
Yes
|
|
Reservoir Drain
|
Yes
|
|
Included Software
|
PolyTemp ViewerUSB driver
|
|
Maximum Ambient Temperature °F
|
95°
|
|
Maximum Ambient Temperature °C
|
35°
|
|
Environmental Compliance
|
RoHSWEEE
|
|
Shipping Weight (pounds)
|
75.00
|
|
Shipping Weight (kilograms)
|
34.00
|
