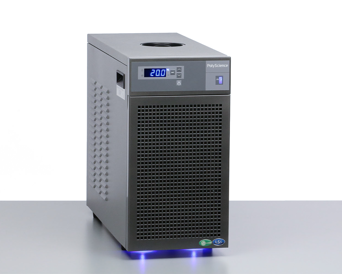

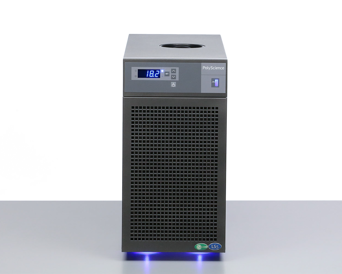

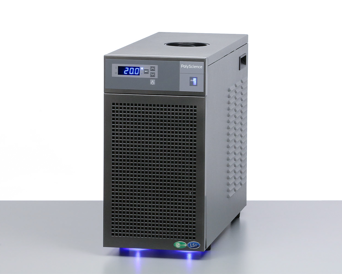

LS Series Chiller, Turbine Pump

Product # LS51TX1A110C

LS Series Chiller, Turbine Pump

Product # LS51TX1A110C
Key Features:
  • Optimized for high performance at low temperatures
  • Capable of cooling multiple rotary evaporators
  • WhisperCool® Environmental Control System

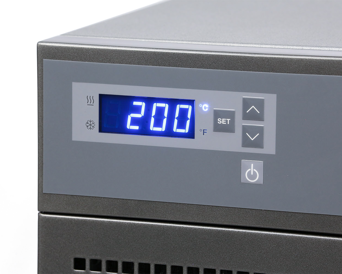

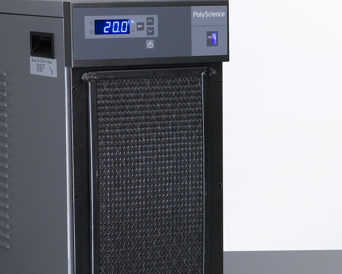

  • Large, easy to read LED display
  • Space-saving design
  • Cooling at ambient temperatures as high as 30°C
  • Low flow shutoff and alarm, high and low temperature alarms
  • Simple setup, operation, and maintenance
  • Centrifugal or turbine pump
  • Fluid level indicator
  • RS232 communication and external water filter optional
Accessories Available:
Chiller Fittings, 1/2" male NPT
External Pt100 Probe for Chillers
Manifold Kit for Chillers
Tube Clamps for Chillers

Common Specifications

Working Temperature Range °F -4° to 104°
Working Temperature Range °C -20° to 40°
Reservoir Capacity (gallons) 0.7
Reservoir Capacity (liters) 2.65
Reservoir Cover Screw-on Cap
Temperature Stability °F ±0.2°
Temperature Stability °C ±0.1°
Display LED
Pump Type Turbine
Pump Speed Constant, Single Speed
Over-Temperature Protection / Failsafe Heater Control Yes
Reservoir Liquid Level Indicator Yes
WhisperCool Environmental Control Technology Yes
Reservoir Drain Yes
Maximum Ambient Temperature °F 95°
Maximum Ambient Temperature °C 35°
Refrigerant R452A
Shipping Weight (pounds) 102.00
Shipping Weight (kilograms) 46.30

60 Hz Only

Part Number for 60 Hz Model LS51TX1A110C
Maximum Pressure (psi) (60Hz) 43.40
Maximum Pressure (bar) (60Hz) 3.00
Maximum Pressure Flow Rate (gpm) (60Hz) 2.60
Maximum Pressure Flow Rate (l/min) (60Hz) 9.80
Cooling Capacity @ -20°C (W) (60hz) 150
Cooling Capacity @ 0°C (W) (60hz) 540
Cooling Capacity @ +20°C (W) (60hz) 900
Included Hardware (60Hz) Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
Electrical Requirements (VAC/Hz/Ph/A) (60Hz) 120/60/1/12
Regulatory Approvals (60Hz) TUV

50 Hz Only

Part Number for 50 Hz Model LS52TY1A110E
Maximum Pressure (psi) (50Hz) 32.00
Maximum Pressure (bar) (50Hz) 2.20
Maximum Pressure Flow Rate (gpm) (50Hz) 2.20
Maximum Pressure Flow Rate (l/min) (50Hz) 8.30
Cooling Capacity @ -20°C (W) (50hz) 140
Cooling Capacity @ 0°C (W) (50hz) 500
Cooling Capacity @ +20°C (W) (50hz) 830
Electrical Requirements (VAC/Hz/Ph/A) (50Hz) 240/50/1/6
