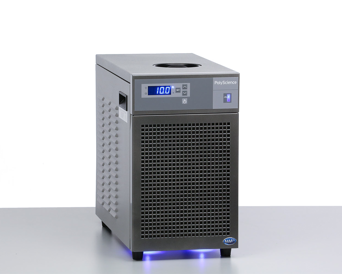

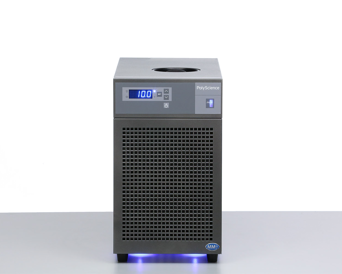

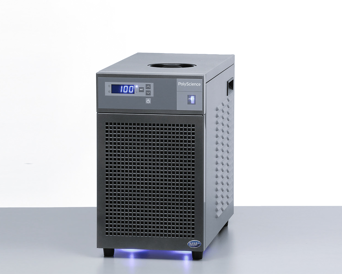

MM Series Chiller, Centrifugal Pump 14.5 psi; 13.2 l/min

Product # MM71MX1A110C

MM Series Chiller, Centrifugal Pump 14.5 psi; 13.2 l/min

Product # MM71MX1A110C
Key Features:
  • Precise and stable temperature control at low temperatures

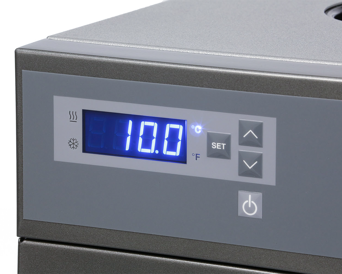

  • Large, easy to read LED display
  • Space-saving, benchtop design
  • Cooling at ambient temperatures as high as 30°C
  • Low flow shutoff and alarm, high and low temperature alarms
  • Simple setup, operation, and maintenance
  • Choice of two different centrifugal pumps
  • Fluid level indicator
  • RS232 communication and external water filter optional
Accessories Available:
Chiller Fittings, 1/2" male NPT
External Pt100 Probe for Chillers
Manifold Kit for Chillers
Tube Clamps for Chillers

Common Specifications

Working Temperature Range °F 23° to 122°
Working Temperature Range °C -5° to 50°
Reservoir Capacity (gallons) 0.7
Reservoir Capacity (liters) 2.65
Reservoir Cover Screw-on Cap
Temperature Stability °C ±0.1°
Display LED
Pump Type Centrifugal
Pump Speed Constant, Single Speed
Over-Temperature Protection / Failsafe Heater Control Yes
Reservoir Liquid Level Indicator Yes
Reservoir Drain Yes
Maximum Ambient Temperature °F 95°
Maximum Ambient Temperature °C 35°
Refrigerant R134a
Shipping Weight (pounds) 75.00
Shipping Weight (kilograms) 34.50

60 Hz Only

Part Number for 60 Hz Model MM71MX1A110C
Maximum Pressure (psi) (60Hz) 14.50
Maximum Pressure (bar) (60Hz) 1.00
Maximum Pressure Flow Rate (gpm) (60Hz) 3.50
Maximum Pressure Flow Rate (l/min) (60Hz) 13.20
Cooling Capacity @ 0°C (W) (60hz) 195
Cooling Capacity @ +20°C (W) (60hz) 435
Included Hardware (60Hz) Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
Electrical Requirements (VAC/Hz/Ph/A) (60Hz) 120/60/1/12
Regulatory Approvals (60Hz) TUV

50 Hz Only

Part Number for 50 Hz Model MM72MY1A110E
Maximum Pressure (psi) (50Hz) 12.50
Maximum Pressure (bar) (50Hz) 0.90
Maximum Pressure Flow Rate (gpm) (50Hz) 3.00
Maximum Pressure Flow Rate (l/min) (50Hz) 11.40
Cooling Capacity @ 0°C (W) (50hz) 175
Cooling Capacity @ +20°C (W) (50hz) 390
Electrical Requirements (VAC/Hz/Ph/A) (50Hz) 240/50/1/4.5
