Liquid-to-Air Cooling
Uses ambient air to cool your application. Heated process fluid is pumped through the unit's fan-cooled heat exchanger and returned to the process.
Liquid-to-Liquid Cooling
Uses your facility's water, pumped through the unit, to remove heat from your application without risk of contamination. Heat removal capacity is dependent on the facility water temperature.
3 Products
More Options Available

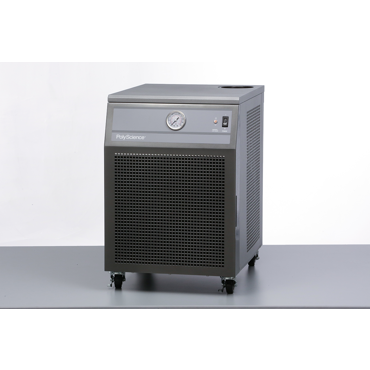

Model 3370 Liquid-to-Air Cooler, 1/3 HP Turbine Pump
More Options Available
Model 3370 Liquid-to-Air Cooler, 1/3 HP Positive Displacement Pump
More Options Available
Flow Through Cooler
Pump Type
Turbine
Positive Displacement
N/A
Working Temperature Range °C
Ambient +5° to 70°C
Ambient +5° to 70°C
-25° to +40°
Part Number for 60 Hz Model
3370TBA11B
3370P9A11B
F25N0A101B
Part Number for 50 Hz Model
3370TBA12E
3370P9A12E
F25N0A102E
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)
120/60/1/5.5
120/60/1/5.5
120/60/1/5
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)
240/50/1/3
240/50/1/3
240/50/1/2.5
More Options Available
Pump Type
Turbine
Working Temperature Range °C
Ambient +5° to 70°C
Part Number for 60 Hz Model
3370TBA11B
Part Number for 50 Hz Model
3370TBA12E
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)
120/60/1/5.5
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)
240/50/1/3
More Options Available
Pump Type
Positive Displacement
Working Temperature Range °C
Ambient +5° to 70°C
Part Number for 60 Hz Model
3370P9A11B
Part Number for 50 Hz Model
3370P9A12E
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)
120/60/1/5.5
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)
240/50/1/3
More Options Available
Pump Type
N/A
Working Temperature Range °C
-25° to +40°
Part Number for 60 Hz Model
F25N0A101B
Part Number for 50 Hz Model
F25N0A102E
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)
120/60/1/5
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)
240/50/1/2.5
