Working Temperature Range °F
|
Ambient + 20° to 392°
|
|
Working Temperature Range °C
|
Ambient +10° to 200°
|
|
Reservoir Capacity (gallons)
|
5.28
|
|
Reservoir Capacity (liters)
|
20
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Reservoir Cover
|
Included
|
|
DuraTop
|
Yes
|
|
Working Access (L x W x D) (inches)
|
9.85 x 12.45 x 5.5 in
|
|
Working Access (L x W x D) (cm)
|
25 x 31.6 x 14 cm
|
|
Temperature Stability °C
|
±0.005°
|
|

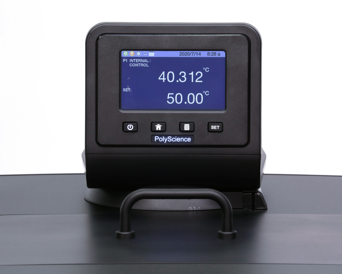

Display
|
4.3" SmartTouch Touchscreen
|
|
Display Resolution (Set)
|
0.01
|
|
Display Resolution (Read)
|
0.001
|
|
Pump Type
|
Pressure/Suction
|
|
Pump Speed
|
Variable
|
|
External Temperature Control Capability
|
Yes
|
|
Flammability Class (DIN 12876-1)
|
III (FL)
|
|
Over-Temperature Protection / Failsafe Heater Control
|
Yes
|
|
Low Liquid Level Protection
|
Yes
|
|
Reservoir Drain
|
Yes
|
|
Included Software
|
PolyTemp Viewer/TDMS file viewer/USB driverTime/Temperature Program Generator/PolyTemp Remote iPhone application
|
|
Maximum Ambient Temperature °F
|
95°
|
|
Maximum Ambient Temperature °C
|
35°
|
|
Environmental Compliance
|
ROHS, WEEE
|
|
Shipping Weight (pounds)
|
70.00
|
|
Shipping Weight (kilograms)
|
31.70
|
