Body
|

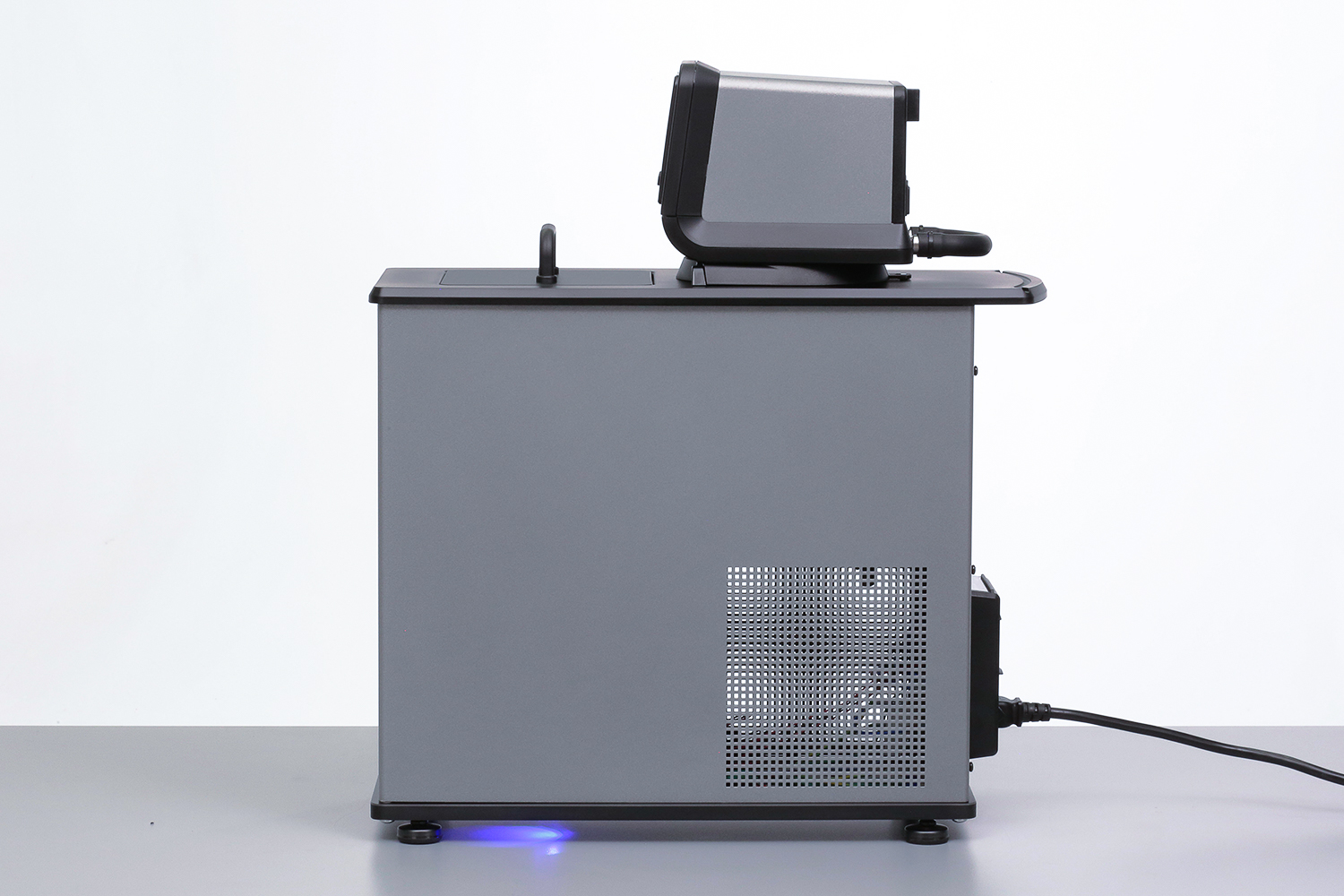

-40, 7 L Ref. Circulator
|
|
Controller Type
|
Advanced Programmable
|
|
Display
|
4.3" SmartTouch Touchscreen
|
|
Languages Supported
|
11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
|
|
Working Temperature Range °C
|
-40° to 200°
|
|
Working Temperature Range °F
|
-40° to 392°
|
|
External Temperature Control Capability
|
Yes
|
|
Flammability Class (DIN 12876-1)
|
III (FL)
|
|
Nominal Cooling Capacity @ +20C (W)
|
360
|
|
Reservoir Capacity (gallons)
|
1.85
|
|
Reservoir Capacity (liters)
|
7
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Working Temperature Range °F
|
-40° to 392°
|
|
Working Temperature Range °C
|
-40° to 200°
|
|
Nominal Cooling Capacity @ +20C (W)
|
360
|
|
Reservoir Capacity (gallons)
|
1.85
|
|
Reservoir Capacity (liters)
|
7
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Reservoir Cover
|
Included
|
|
DuraTop
|
Yes
|
|
Working Access (L x W x D) (inches)
|
6.18 x 5.59 x 5 in
|
|
Working Access (L x W x D) (cm)
|
15.7 x 14.2 x 12.7 cm
|
|
Temperature Stability °C
|
±0.005°
|
|
Display
|
4.3" SmartTouch Touchscreen
|
|
Display Resolution (Set)
|
0.01
|
|
Display Resolution (Read)
|
0.001
|
|
Pump Type
|
Pressure/Suction
|
|
Pump Speed
|
Variable
|
|
Over-Temperature Protection / Failsafe Heater Control
|
Yes
|
|
Low Liquid Level Protection
|
Yes
|
|
WhisperCool Environmental Control Technology
|
Yes
|
|
Reservoir Drain
|
Yes
|
|
Included Software
|
PolyTemp ViewerTDMS file viewerUSB driverTime/Temperature Program GeneratorPolyTemp Remote iPhone application
|
|
Maximum Ambient Temperature °F
|
95°
|
|
Maximum Ambient Temperature °C
|
35°
|
|
Overall Dimensions (L x W x D) (inches)
|
21.3 x 8.7 x 24.3 in
|
|
Overall Dimensions (L x W x D) (cm)
|
54.1 x 22.1 x 61.7 cm
|
|
Refrigerant
|
R452A
|
|
Environmental Compliance
|
ROHS, WEEE
|
|
Shipping Weight (pounds)
|
90.00
|
|
Shipping Weight (kilograms)
|
40.80
|
